HYUNDAI X20 AVANTE/ELANTRA WITH PJ3 XENON PROJECTOR.

This is hyundai x20 2008 model, it is come with stock H7 low beam, for the mod i'm using pj3 H3C (H7)projector lens to replace the bulb.


left picture is the stock headlamp before modify, because of the reflector bowl is shallow, so after the retrofit work, projector lens is very close to the headlamp cover.


The 2.8" projector with shroud is very full for avante/elantra headlamp.



Because of the shroud's size and the chrome plating surface to make the headlamp overall very original look. The owner next project will add on the DRL inside the headlamp and projector foglamp retrofit, i will upload the process and details again when i done it. =)


light out put of 2.8" pj3 H3C xenon projector lens with 40w 5000k hid kits.

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

TOYOTA LAND CRUISER 2001 2.2INCH PROJECTOR.

Toyota land cruiser 2001, the car is about 10 year-old, the headlamp reflection is getting weak. Owner planing to upgrade the headlamp to projector instead of go for new pair headlamp.


Left picture is show for the headlamp before modify, and the right picture is after retrofit the 2.2" projector with pearl white paint job.


The land cruiser 2001 high beam and low beam using 9005(hb3) and 9006(hb4), the 1st project i'm retrofit the projector at 9006 reflector. (owner may upgrade the 2nd bi-xenon on 9005's reflector soon).


The reflector actually quite big and square, because of the bulb socket position, we can only go for 2.2" projector lens, ebcause if fit in 2.6" projector, it may do some modify on the shroud and rs cover.


Because the headlamp age is about 10 year-old, so the rs cover chrome plating is arld blur. So i make the new paint for the cover which is pearl white to matching with the car body color. =)


The pearl white paint quality is really good, and it is with high-temp resistance function. so no need to worry about the paint will be peel-off.


This is the picture with complete work, for next modify i will fit in 2nd projector to become quad projector and add on Day Running Light.

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

PROJECTOR LENS COMPARISON

Today i'm going to compare the projector for CHINA G5, E46-R, FX-R, PJ3(H3C) & PJ3(D2S/H7). Those projector lens is most command in malaysia market, this comparison i'm going to show the brightness test and light beam pattern. About the brightness test i'm using headlight aiming machine, it's 100% correct and no mistake, i also sharing about the minimum and maximum of light brightness in number of lumens.



I'm using taiwan made 40wattage hid ballast for all projector in fair comparison.



This is CHINA G5 projector lens that took out from 1 of my client car, and he no need the projector anymore, that's why for me to keep as sample. From the picture is about the projector performance, but the light beam pattern is for LHD(left hand drive) and center part with a empty light spot. The lighting is more average at the bottom and the side part, The "Z" center point with the empty light spot, thats why the light out put is dimmer on the road. The light aiming machine is test for the center point of "Z". From the light beam picture of G5, the number is actually expected.



This is the E46-R projector, which is 07/08 productions. This is a LHD & RHD use projector, compare to the china G5 projector, the center part is obviously increase. This is taiwan 07/08 productions compare to china G5 2010 productions. The min 41300cd to maximum 42300cd is for hid with projector is standard, but for E46-R light cut off can be improve.



This is FX-R projector, which is the replica version from infiniti fx-35, this items is quite command in US. It's provide in LHD and RHD too, the light cut-off line is pretty clean, the lumen is slightly higher than E46-R which is minimum 45400cd and maximum 46200cd(fx-r).


This is taiwan 2010/2011 productions which is call PJ3, this projector is special design for H4 and H7 headlamp without modify on the reflector bowl. I was shock when i get the projector in light aiming machine, the light brightness almost increase 70% ++ compare with taiwan 07/08 productions! The light cut-off performance pretty good with a deep purple line.



This is the taiwan productions for 2011, this is d2s and h7,the light cut-off mentioned the same shape, but improve for the reflector bowl, we can see from the number of light aiming machine is almost 10000cd. Finalize for this new generation taiwan projector light brightness compare to 2007 productions is almost 1 times increase by the same ballast performs.

HONDA CITY 5G WITH PJ3 BI-XENON PROJECTOR RETROFIT.

This is honda city 2010, owner looking for something red, so i recommend he go for red demon and white angel ccfl setup, the rexx-styling design eye lips make the whole headlamp more styling.


This is honda city 5g dedicate projector lens with fully smoke, paint as usual we using 600'c high-temp spray paint.


test the ccfl rings before screw it on the reflector bowl.


complete work on the car, for light out put on 5g with pj3 you guys can refer to the link below:



contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

NAZA CITRA 2.0 WITH 2.8" PJ3 BI-XENON PROJECTOR LENS.

This is naza citra 2006 model, after almost 6 years reflector headlamp usage, he planing to retrofit a projector lens for his citra.


This is the original look for the naza citra headlamp before retrofit work.


Because of the factory chrome plating is not really good, after few years usage with halogen, it's start to peel-off already. So, have to remove the peel-off chrome part by using sand-paper (layer by layer). After that, using good quality paint(prefer high-temp paint) to spray on the surface.


Left picture is the original reflector before retrofit, and right picture is after the pj3 bi-xenon projector setup. Pj3 2.8" is perfect fiting for naza citra without any cutting and modify work on reflector. 0% damage on reflector bowl.


This is the complete work of naza citra with partly smoked headlamp.

Noted: Thanks guys for fully support for this few years, now we are over thousand headlamp modified experience record! =D

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

TOYOTA CALDINA WITH QUAD ANGEL EYES

Left picture is the original chrome plating surface, owner require to paint with 600'c matt black. Right picture is the complete work of the paint job. If using normal 5 bucks spray paint for the headlamp, the paint may peel-off after sometime, because there is not the function with heat-resistance.


i'm using the biggest ccfl rings put at the low beam side, and apply other open rings for the high beam side. We provide the ccfl can perfect fit into toyota caldina headlamp. =)



This the the complete headlamp overall and with the angel eyes on. 600'c high-temp spray paint(black, white, gold and etc) + 4 ccfl installation price start from rm450(depends on car model). please contact for more information. thanks =)

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"
location: subang jaya, selangor.

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

MITSUBISHI LEGNUM VR4 WITH QUAD ANGEL EYES.

*ABOVE PICTURE IS THE ORIGINAL HEADLIGHT BEFORE MODIFY.

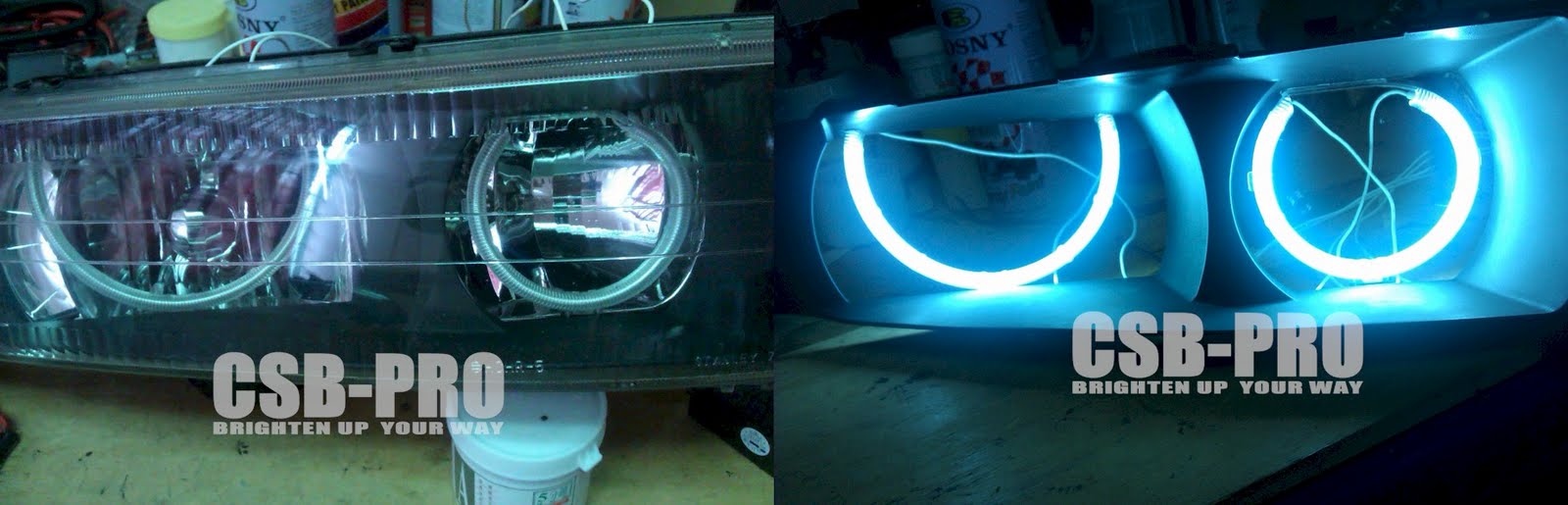

This is the headlamp from mitsubishi legnum vr4, the headlamp is semi clear type, as long as the center part is clear so that we can install the angel eyes for it, because the headlamp shape is long and narrow, so i using open ring for it. The service and products cost start from rm400 (4 ccfl rings set), please contact for more details. =)

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

KENARI/MOVE RS WITH 2.2" PJ3 + Q45 COMPOUND PROJECTOR

This model we call it kenari rs in malaysia, it is move rs design in japan by daihatsu, Owner mr.pauh choose the q45 compound type projector to replace the existing foglamp, and retrofit the Pj3 2.2" projector bi-xenon lens.


The ccfl rings i using the biggest ring 140mm fit into headlamp, to make the light overall bigger, since it is fully smoke headlamp.


For the k-car overall design matching with the q45 compound type projector, it is just look like a machine gun. Because of the orange body color, so i matched the red color ccfl(demon) into q45 to make it obvious at night time driving. I didn't put the angel eyes for q45 because it will be too busy for the car front look.



Because of the eye-lips, to cover up part of ccfl, to make it look like open rings, it's just like the eyes with rage during night time.


After the lamp design, now is the turn to talk about the light performance. 2.2" projector is the smallest bi-xenon that we selling even in the market, but from the picture you guys can see the light output is performs really well. for more information please contact desmond lim. Or we suggest you straight come over our office to choose the projector which is suitable for your ride, we can mod over 90% of the car/bike model in malaysia market.

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

PROTON PERDANA 2.6" PJ3 PROJECTOR RETROFIT

1. Proton perdana 2001, as all the perdana user they will know it is worst headlamp in proton car series. The new perdana cost over hundred k, but the headlamp such like a joke to the owner. A lot of perdana user is arld disappointed with the headlight, even if they are using hid kits.


2. About this post i'm going to show how's the perdana retrofit pj3 projector and the performance. Above picture the looking before and after retrofit the projector. Performance projector is actually not only good in looking, many of people told me that "PROJECTOR EVEN WITH HID KITS ALSO CAN'T SEE CLEAR ON THE ROAD". and i totally DO NOT AGREE with this. It's because a lot of people looking for the projector "cheap and good in performance", so most of them just go for after-market projector light. Of course the cheap after-market headlamp cant performs well, do you expect cost about rm300 to RM600 after-market projector headlamp with good performance? The price even lower than stock headlamp. I can said it is only for styling (totally not for safety purpose), and without any function. Or else BMW, BENTLEY, BENZ, TOYOTA and most of the luxury car comes with projector for what? =)

NOTE: before you plan to get a projector for your car, study more in projector and you will know what is going on, and whats wrong with after-market projector headlight.


3. PJ3 projector we develop in new H1, H7 and D2S bulb socket, almost can fit in most of the bulb type for projector. For H4 bulb socket plug and play kits, we provide in H3C bulb type projector, installation very easy, just screw it on the reflector. Compare to E46 or fx-r, i think this kits is easy as 1 2 3. Installation without any damage on the reflector bowl, 2nd and 3rd picture is after screw the projector up. It's 100% perfect fit into H4 bulb socket.


4. After screw the projector on the reflector bowl, just measure the lamp space for the shroud and the rs cover (for small or limited lamp space) if necessary just follow the size to modify the shroud or rs cover.

*Most of the car no need to mod the shroud, just plug and play.


5. This is the performance for 2.6" pj3 projector lens, do you believe those light out put is shoot out by malaysia local car proton perdana? =) yes it is the real photo capture on the spot!



6. If you have any question about the perdana projector retrofit or any question about how's the projector work. Not matter for business or knowledge please feel free to contact us to get know more about it. =)

Cheers!

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"
location: subang jaya, selangor.

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

PROTON GEN2 AFTERMARKET HEADLAMP PROJECTOR REPLACEMENT

1. I had received a lot of email and msg, asking about the different between after-market projector headlamp and performance projector kits. Most of them ask " desmond, why after-market projector is cheaper than yours? " i can said it is totally different thing between the projector for retrofit and the headlamp manufacture from factory, those headlamp factory aim for quantity and price,and we aim for safety purpose and quality products. Below i going explain and compare the both projector lens.


2. from the picture u can see the different between PJ3 and aftermarket headlamp's projector. After-market headlamp projector decision is depends on design, we decide the projector is depends on lamp space. You can obviously saw the shallow reflector of the projector's reflector, and the projector back and front part is not in proportion, do you think it can be performs well?


3. Left picture is the after-market projector, refer to the after-market projector's shield(upper picture), this is what the headlamp exactly performance with hid. It cant even provide the basic lighting coverage and clean cut-off line. Right picture is Pj3 projector, picture replace a thousand words, the "Z" center part with a full purple line, it's mean the light spot is exactly center.


4. In the picture u can exactly see the light empty part at right hand side, about the left hand side u can see the unbalance light output. It cant be provide a wider view then u driving at night time, especially in the dark road. When you turn to high beam, it is just like nothing(right picture), i think is it just for pretending to halogen for road block?


5. You guys can compare this bi-xenon projector's performance with the upper picture. The 35w ballast is exactly the same before the retrofit,no matter the brightness, the lighting coverage, the cut-off line even pj3 can get a very wide view (3.5 to 4 lane).


6. Hope this post can answer many of ur question between after-market projector and performance projector kits. It's different, if you using those after-market healdamp, i will suggest using stock headlamp, because the light out put getting better than this. =) SAFETY FIRST...
