HYUNDAI X20 AVANTE/ELANTRA WITH PJ3 XENON PROJECTOR.

This is hyundai x20 2008 model, it is come with stock H7 low beam, for the mod i'm using pj3 H3C (H7)projector lens to replace the bulb.


left picture is the stock headlamp before modify, because of the reflector bowl is shallow, so after the retrofit work, projector lens is very close to the headlamp cover.


The 2.8" projector with shroud is very full for avante/elantra headlamp.



Because of the shroud's size and the chrome plating surface to make the headlamp overall very original look. The owner next project will add on the DRL inside the headlamp and projector foglamp retrofit, i will upload the process and details again when i done it. =)


light out put of 2.8" pj3 H3C xenon projector lens with 40w 5000k hid kits.

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

TOYOTA LAND CRUISER 2001 2.2INCH PROJECTOR.

Toyota land cruiser 2001, the car is about 10 year-old, the headlamp reflection is getting weak. Owner planing to upgrade the headlamp to projector instead of go for new pair headlamp.


Left picture is show for the headlamp before modify, and the right picture is after retrofit the 2.2" projector with pearl white paint job.


The land cruiser 2001 high beam and low beam using 9005(hb3) and 9006(hb4), the 1st project i'm retrofit the projector at 9006 reflector. (owner may upgrade the 2nd bi-xenon on 9005's reflector soon).


The reflector actually quite big and square, because of the bulb socket position, we can only go for 2.2" projector lens, ebcause if fit in 2.6" projector, it may do some modify on the shroud and rs cover.


Because the headlamp age is about 10 year-old, so the rs cover chrome plating is arld blur. So i make the new paint for the cover which is pearl white to matching with the car body color. =)


The pearl white paint quality is really good, and it is with high-temp resistance function. so no need to worry about the paint will be peel-off.


This is the picture with complete work, for next modify i will fit in 2nd projector to become quad projector and add on Day Running Light.

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

PROJECTOR LENS COMPARISON

Today i'm going to compare the projector for CHINA G5, E46-R, FX-R, PJ3(H3C) & PJ3(D2S/H7). Those projector lens is most command in malaysia market, this comparison i'm going to show the brightness test and light beam pattern. About the brightness test i'm using headlight aiming machine, it's 100% correct and no mistake, i also sharing about the minimum and maximum of light brightness in number of lumens.



I'm using taiwan made 40wattage hid ballast for all projector in fair comparison.

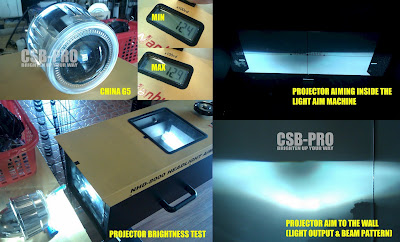

This is CHINA G5 projector lens that took out from 1 of my client car, and he no need the projector anymore, that's why for me to keep as sample. From the picture is about the projector performance, but the light beam pattern is for LHD(left hand drive) and center part with a empty light spot. The lighting is more average at the bottom and the side part, The "Z" center point with the empty light spot, thats why the light out put is dimmer on the road. The light aiming machine is test for the center point of "Z". From the light beam picture of G5, the number is actually expected.



This is the E46-R projector, which is 07/08 productions. This is a LHD & RHD use projector, compare to the china G5 projector, the center part is obviously increase. This is taiwan 07/08 productions compare to china G5 2010 productions. The min 41300cd to maximum 42300cd is for hid with projector is standard, but for E46-R light cut off can be improve.



This is FX-R projector, which is the replica version from infiniti fx-35, this items is quite command in US. It's provide in LHD and RHD too, the light cut-off line is pretty clean, the lumen is slightly higher than E46-R which is minimum 45400cd and maximum 46200cd(fx-r).

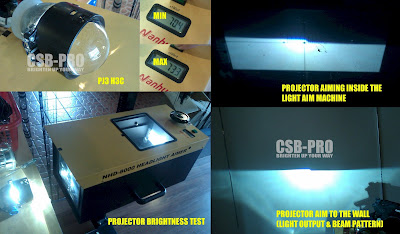

This is taiwan 2010/2011 productions which is call PJ3, this projector is special design for H4 and H7 headlamp without modify on the reflector bowl. I was shock when i get the projector in light aiming machine, the light brightness almost increase 70% ++ compare with taiwan 07/08 productions! The light cut-off performance pretty good with a deep purple line.



This is the taiwan productions for 2011, this is d2s and h7,the light cut-off mentioned the same shape, but improve for the reflector bowl, we can see from the number of light aiming machine is almost 10000cd. Finalize for this new generation taiwan projector light brightness compare to 2007 productions is almost 1 times increase by the same ballast performs.

HONDA CITY 5G WITH PJ3 BI-XENON PROJECTOR RETROFIT.

This is honda city 2010, owner looking for something red, so i recommend he go for red demon and white angel ccfl setup, the rexx-styling design eye lips make the whole headlamp more styling.


This is honda city 5g dedicate projector lens with fully smoke, paint as usual we using 600'c high-temp spray paint.


test the ccfl rings before screw it on the reflector bowl.


complete work on the car, for light out put on 5g with pj3 you guys can refer to the link below:



contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

NAZA CITRA 2.0 WITH 2.8" PJ3 BI-XENON PROJECTOR LENS.

This is naza citra 2006 model, after almost 6 years reflector headlamp usage, he planing to retrofit a projector lens for his citra.


This is the original look for the naza citra headlamp before retrofit work.


Because of the factory chrome plating is not really good, after few years usage with halogen, it's start to peel-off already. So, have to remove the peel-off chrome part by using sand-paper (layer by layer). After that, using good quality paint(prefer high-temp paint) to spray on the surface.


Left picture is the original reflector before retrofit, and right picture is after the pj3 bi-xenon projector setup. Pj3 2.8" is perfect fiting for naza citra without any cutting and modify work on reflector. 0% damage on reflector bowl.


This is the complete work of naza citra with partly smoked headlamp.

Noted: Thanks guys for fully support for this few years, now we are over thousand headlamp modified experience record! =D

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

TOYOTA CALDINA WITH QUAD ANGEL EYES

Left picture is the original chrome plating surface, owner require to paint with 600'c matt black. Right picture is the complete work of the paint job. If using normal 5 bucks spray paint for the headlamp, the paint may peel-off after sometime, because there is not the function with heat-resistance.


i'm using the biggest ccfl rings put at the low beam side, and apply other open rings for the high beam side. We provide the ccfl can perfect fit into toyota caldina headlamp. =)



This the the complete headlamp overall and with the angel eyes on. 600'c high-temp spray paint(black, white, gold and etc) + 4 ccfl installation price start from rm450(depends on car model). please contact for more information. thanks =)

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"
location: subang jaya, selangor.

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

MITSUBISHI LEGNUM VR4 WITH QUAD ANGEL EYES.

*ABOVE PICTURE IS THE ORIGINAL HEADLIGHT BEFORE MODIFY.





This is the headlamp from mitsubishi legnum vr4, the headlamp is semi clear type, as long as the center part is clear so that we can install the angel eyes for it, because the headlamp shape is long and narrow, so i using open ring for it. The service and products cost start from rm400 (4 ccfl rings set), please contact for more details. =)

contact:
desmond - +60127102617
[sms 24hours, call from 10am to 10pm]
email: satuga_projector@hotmail.com
facebook: search "csb-pro autolight trading"

FOR MORE INFORMATION PLEASE CLICK " OLDER POST " AT THE BOTTOM PART OF THE WEB TO VIEW MORE CAR MODEL, THANK YOU.

KENARI/MOVE RS WITH 2.2" PJ3 + Q45 COMPOUND PROJECTOR

This model we call it kenari rs in malaysia, it is move rs design in japan by daihatsu, Owner mr.pauh choose the q45 compound type projector to replace the existing foglamp, and retrofit the Pj3 2.2" projector bi-xenon lens.


The ccfl rings i using the biggest ring 140mm fit into headlamp, to make the light overall bigger, since it is fully smoke headlamp.


For the k-car overall design matching with the q45 compound type projector, it is just look like a machine gun. Because of the orange body color, so i matched the red color ccfl(demon) into q45 to make it obvious at night time driving. I didn't put the angel eyes for q45 because it will be too busy for the car front look.



Because of the eye-lips, to cover up part of ccfl, to make it look like open rings, it's just like the eyes with rage during night time.


After the lamp design, now is the turn to talk about the light performance. 2.2" projector is the smallest bi-xenon that we selling even in the market, but from the picture you guys can see the light output is performs really well. for more information please contact desmond lim. Or we suggest you straight come over our office to choose the projector which is suitable for your ride, we can mod over 90% of the car/bike model in malaysia market.
